Product Introduction
The handheld laser welding machine is a new type of convenient laser welding machine that can be operated by the general public.
The handheld laser welding machine combines the lightness and ease operation of traditional argon arc welding with the environmental protection, high efficiency and energy saving of laser welding. At the same time, with the wobble welding technology and automatic wire feeding system, it perfectly solves the problem of thin plates, and plates with large gaps are difficult to be efficient and high-quality Difficulties in welding.
Compared with traditional argon arc welding, the handheld laser welding machine is more environmentally friendly, efficient and flexible. It not only greatly improves the efficiency of traditional welding, but most importantly, it greatly improves or even solves the occupational health problems of traditional argon arc welding operators.
Features
1. High efficiency ,energy saving ,environment friendly and more safety operation ;
2. Using fiber laser generator which guarantee high reliability and newest technology ;
3. At least 10 meters length of fiber cable which more flexible for working;
4. Smooth weld bead with minimum oxidation ,work piece no deformation ;
5. Much faster welding speed than traditional welding with minimum polish ;
6. Adjustable laser beam width which meet various gaps parts welding requirements ;
7. Easy to operate and no need high experienced operators like arc welding;
8. No UV light ,no ozone when operating ,keep operators health .
Applications
Stainless steel kitchen and bathroom supplies, stainless steel door and window guardrails, staircase elevators, stainless steel furniture, hardware accessories, power distribution cabinets, ducts, containers, etc.
Specifications
Laser Power | 2000W |
Laser wavelength | 1064nm |
Penetration | <4mm (depends on laser power and material) |
Working Temperature | <40℃ |
Working humidity | <70% |
Length of fiber cable | 10 meters(standard) |
Power Supply | 1PH / 220V±10% / 50-60Hz |
Cooling Way | water cooling |
Laser Type | Continuous |
Comparison with traditional welding(For reference):
item | Traditional welding | Laser welding | Handheld laser welding |
Heat effect | Very high | Low | Low |
Welding deformation | Big | Small | Small |
Welding strength | Good | Good | Excellent |
Post-processing | Polish | No or Rarely polished | No or Rarely polished |
Welding speed | Common | fast | fast |
Applicable materials | Stainless steel,carbon steel,AL, | Stainless steel,carbon steel, | Stainless steel,carbon steel,AL, |
Consumables | Many | Little | Little |
Operation difficulty | Difficult | Common | Simple |
Operator safety | dangerous | Safe | Safe |
Environmental | Polluted | Environmental | Environmental |
Welding fault tolerance | Good | Bad | Good |
Wobble welding | NO | NO | Yes |
Adjusted beam width | NO | NO | Yes |
Welding quality | Bad | Common | Excellent |

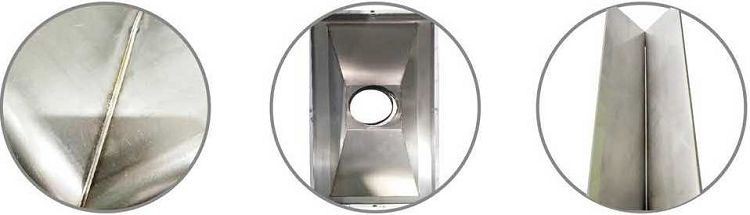

Sample pictures
FAQ
Q:What should I pay attention to when operating the laser?
A:Operate the laser equipment according to the instructions, wear laser protective glasses, gloves and other safety protection measures, and operate by dedicated personnel
Q: Are you a manufacturer ?
A: Yes,we are manufacturer with our own manufacture center .
Q: What is your main products ?
A: Our main products are laser cleaning machine ,laser welding machine ,laser cutting machine and laser marking machine .
