Injection Mold Laser Cleaning Machine

Injection Mold Laser Cleaning Machine

Plastic injection molds need to be cleaned during long-term use. However, the existing cleaning agents and cleaning methods for cleaning plastic injection molds mainly have defects such as incomplete cleaning and low cleaning efficiency.
Send Inquiry
Chat Now
Description

Product Introduction

Plastic injection molds need to be cleaned during long-term use. However, the existing cleaning agents and cleaning methods for cleaning plastic injection molds mainly have defects such as incomplete cleaning and low cleaning efficiency.


The injection mold laser cleaning system uses a pulsed fiber laser with no damage to the mold surface, adjustable pulse width, and a high-frequency laser beam with no thermal effect to clean the mold surface, which has achieved the purpose of removing impurities and contaminants on the mold surface or hole position.


The mold laser cleaning system is environmentally friendly, no consumables, no media, flexible cleaning, convenient operation, long service life, high cleaning efficiency, and is gradually replacing traditional mold cleaning methods.


Features

1. Precision clean without heat effect during processing;

2. Non-contact cleaning,no internal stress and deformation;

3. No need chemical detergent, no consumable ;

5. Precise cleaning, can achieve precise location, precise size selective cleaning ;

6. High cleaning efficiency, stable equipment and low maintenance ;

7. Environmental protection and pollution-free.


Applicable materials and industries

1.Injection mold Release agent, oxide cleaning;

2.Repair and maintenance of mold parts such as degreasing;

3.Mold non-destructive repair;

4.Product cleaning with high surface roughness and effect requirements.


Specifications(For reference only)

Laser Power

500W

Laser wavelength

1064nm

Pulse width(ns)

90-130

Pulse repetition frequency(KHZ)

10-50

Max Single Pulse Energy(MJ)

25

Laser source type

Fiber laser source

Working Humidity

<70%

Working Temperature

5-40°C

Power Supply

1PH / 220V±10% / 50-60HZ / 20A

Power Consumption

4.5 KW

Size

1080 x 710 x 1170mm

Net Weight

210KG

Cooling Way

Water cooling

Laser Type

Pulse

Length of fiber cable(m)

5 (Option)

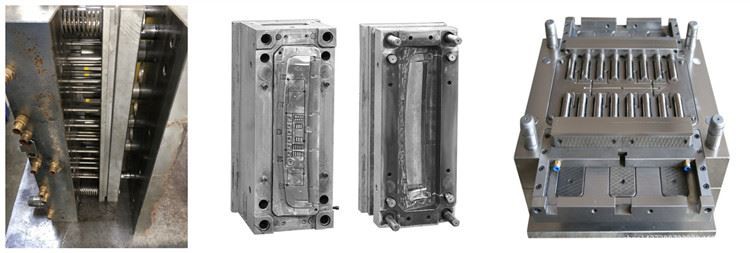

Application field pictures

6.3_c


Comparison with traditional clean methods

Comparision

Laser Cleaning

Chemical Cleaning

Mechanical Grinding

Dry ice cleaning

Cleaning Method

non-contact cleaning

contact cleaning

Abrasive contact cleaning

non-contact cleaning

Harm to base material

None

Yes

Yes

None

Cleaning Efficiency

High

Low

Low

Mid.

Consumable

Power

Chemical Detergent

Abrasive paper, grinder, abrasive stone

Dry Ice

Cleaning result

Very good, very clear

Medium, uneven

Medium, uneven

Good, uneven

Precision cleaning

Accuracy controllable. High precision

Uncontrollable, low precision.

Uncontrollable, medium precision.

Uncontrollable, poor precision.

Safety/Environment

No pollution

Chemical pollution

Dust pollution

No pollution

Operation

Easy to operate, portable or automation optional.

Complicated process, higher technical required of the operator. Pollution prevention measures required.

Need more time & manpower. Pollution prevention measures required.

Easy to operate, portable or automatic.

Investment

High investment on machine. But no consumable, low maintenance cost

Low investment on machine. But expensive consumables

Medium investment on machine. High labor cost.

Medium investment on machine. High consumable cost.


FAQ

Q: What is the delivery time of your laser cleaning machine :

A: Normally we have new machines in stock ,The delivery time of ordinary machines is generally 7-15 working days ;


Q: What is your payment Terms ?

A: 30% as advanced payment (standard machine) ,70% before shipment


Q:What is the guarantee of your laser cleaning machine ?

A: 2 years guarantee for laser source ,1 year for other parts ,lifetime maintenance and technical support
