Foreign objects in the overhead lines of the power grid pose a great threat to the normal operation of the power grid, and are also one of the main reasons for the unplanned outage of the power grid caused by short-circuiting of metal wires and single-phase grounding.
However, conventional tools and methods are relatively inefficient in removing foreign objects in the power grid. Operators often need to perform high-altitude, high-voltage live work, which poses great work risks and takes up a lot of human and material resources.
The principle of laser obstacle removal is to use the laser beam to irradiate the foreign object to burn and vaporize it, so that the foreign object can be separated from the power grid.
The laser obstacle clearer can perform remote obstacle clearing, which simplifies the obstacle clearing process and improves the operator's work safety.
The Raytheon series portable obstacle laser clearer is newest laser system of JezTech ,the system can realize long-distance (50-300 meters), high-power (1000W) operation. The integrated design is easy to carry outdoors, and the operation is simple and convenient.

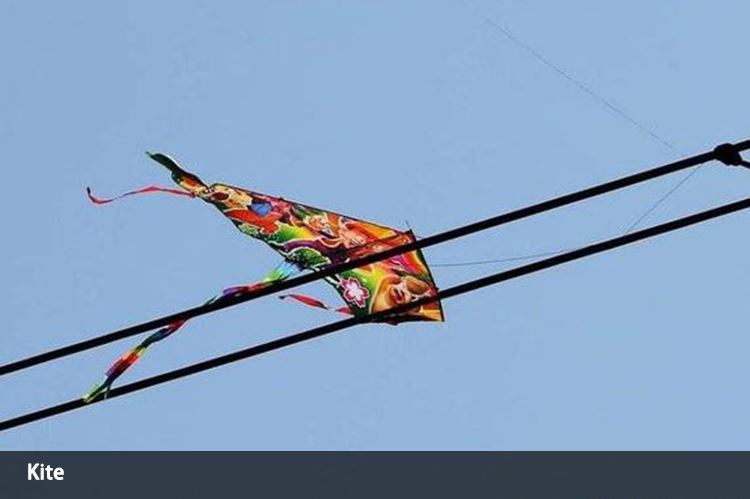

At present, it is mainly used to remove foreign objects of power grid such as kites, kite strings, plastic bags, advertising cloth, bird nests, branches and other foreign objects on overhead lines of the power grid system.
Product Composition
①：Laser transmitter ②：Precision Tripod head
③：Tripod ④：Host ⑤：Dedicated power supply
Features
1. It can realize remote (working distance 50-300 meters) operation.
Short operation time (several seconds to minutes), no need to climb the power grid；
2. No need for power outages and does not affect the normal operation of the power grid ；
3. Remote monitoring function, on-site operation status, equipment status and other
information are wirelessly transmitted back to the platform in real time ；
4. Laser light output direction is controlled by precision electronic Tripod head to realize
laser precise control ;
5. Night vision function to meet the needs of night work;
6. The whole process of clearing obstacles has video recording function;
7. Simple operation, work control through tablet computer or mobile phone Bluetooth;
8. Equipped with a high-magnification telescope, red and green two-color auxiliary indicator
guarantee clear work throughout the day;
9. Stable performance, can realize continuous work in high temperature environment.
Scope of application
Comparison with traditional clearing ways
Comparision | Manual clearing | Robot clearing | Drone clearing | Laser Clearing |
Number of people required | 3-6 | 2-4 | 2-3 | 2 |
Working efficiency | More than 1 hour | More than 1 hour | 10-20 minutes | 5 seconds-10 minutes |
Working security | Need climb to the high-altitude power grid, low safety factor | Need climb to the high-altitude power grid, low safety factor | No need to climb to the high-altitude power grid, high safety factor | No need to climb to the high-altitude power grid, high safety factor |
Whether a power outage is required | Yes | Yes | Yes | No |
Testing Video
