Product Introduction
Automobile tire mold cleaning machine is a mold laser cleaning machine specifically for the automobile tire industry.
Using pulsed fiber laser, the laser cleaning machine can more quickly and effectively clean the sulfide, inorganic matter, silicone oil, carbon black, etc. on the surface of the automobile tire mold without any consumables and will not cause damage to the mold surface.
Compared with the traditional tire mold cleaning method, laser cleaning is more environmentally friendly, has small site requirements, high flexibility, long laser life, and easier automatic cleaning.
Features
1. Precision clean without heat effect during processing;
2. Non-contact cleaning,no internal stress and deformation;
3. No need chemical detergent, no consumable ;
5. Precise cleaning, can achieve precise location, precise size selective cleaning ;
6. High cleaning efficiency, stable equipment and low maintenance ;
7. Environmental protection and pollution-free.
Applicable materials and industries
1.Automobile tire mold clean;
2.Cleaning of auto parts such as engines, cylinders, wheels, etc.;
3.Non-destructive testing of automobile chassis;
4.Product cleaning with high surface roughness and effect requirements.
Specifications(For reference only)
Laser Power | 500W | 1000W |
Laser wavelength | 1064nm | |
Pulse width(ns) | 90-130 | |
Pulse repetition frequency(KHZ) | 10-50 | |
Max Single Pulse Energy(MJ) | 25 | 100 |
Laser source type | Fiber laser source | |
Working Humidity | <70% | |
Working Temperature | 5-40°C | |
Power Supply | 1PH / 220V±10% / 50-60HZ / 20A | |
Power Consumption | 4.5 KW | 8 KW |
Size | 1080 x 710 x 1170mm | |
Net Weight | 210KG | |
Cooling Way | Water cooling | |
Laser Type | Pulse | |
Length of fiber cable(m) | 5 (Option) | |

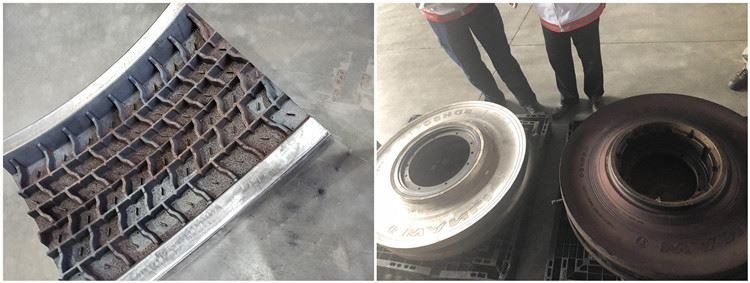

Application field pictures
Comparison with traditional clean methods
Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Cleaning Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Cleaning Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Cleaning result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision cleaning | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical required of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High labor cost. | Medium investment on machine. High consumable cost. |
FAQ
Q:Do you have any support and requirements for regional agents?
A:We will provide strong support to agents in terms of demo machines, product prices, local market exhibitions and local enquiries.
Of course, it is best for agents to have their own sales and after-sales teams, and have certain potential customer resources and economic strength
Q:What aspects should be paid attention to when using the laser cleaning machine in winter or when the temperature is below zero degrees Celsius?
A:To prevent the water tank from freezing and causing damage to the laser and water tank, it is necessary to add a proper proportion of antifreeze to the water tank
Q: Can print our Brand name and Logo on the machine ?
A: Yes,OEM accepted
Q:How many sets laser machines you sold every year ?
A: Normally about 1,500-2,000 sets laser machines every year sold to domestic and overseas market .
