Product Introduction
Auto parts laser cleaning machine adopts the latest generation of pulsed fiber laser, integrated design, 2D high-efficiency cleaning galvanometer mode, 6 laser cleaning modes, which brings unexpectedness cleaning effect to car engine repair, cylinder cleaning, and other auto parts .
Using pulsed fiber laser, the laser cleaning machine can more quickly and effectively clean the oil stains, grease, rust and other contaminants on the surface of the auto parts without any consumables and will not cause damage to the mold surface.
The surface of auto parts after laser cleaning is completely new, without any impurities remaining, and will not cause damage and thermal effects on the surface of the product.
Especially for areas that are difficult to clean by traditional cleaning methods, laser cleaning can perfectly solve them.
Features
1. Precision clean without heat effect during processing;
2. Non-contact cleaning,no internal stress and deformation;
3. No need chemical detergent, no consumable ;
5. Precise cleaning, can achieve precise location, precise size selective cleaning ;
6. High cleaning efficiency, stable equipment and low maintenance ;
7. Environmental protection and pollution-free.
Applicable materials and industries
1.Cleaning of auto parts such as engines, cylinders, wheels, etc.;
2.Non-destructive testing of automobile chassis;
3.Product cleaning with high surface roughness and effect requirements.
Specifications(For reference only)
Laser Power | 200W | 300W |
Laser wavelength | 1064nm | |
Pulse width(ns) | 90-130 | |
Pulse repetition frequency(KHZ) | 10-50 | |
Max Single Pulse Energy(MJ) | 10 | 12.5 |
Laser source type | Fiber laser source | |
Working Humidity | <70% | |
Working Temperature | 5-40°C | |
Power Supply | 1PH / 220V±10% / 50-60HZ / 20A | |
Power Consumption | 2.3 KW | 3.5 KW |
Size | 1080 x 710 x 1170mm | |
Net Weight | 210KG | |
Cooling Way | Water cooling | |
Laser Type | Pulse | |
Length of fiber cable(m) | 5 (Option) | |

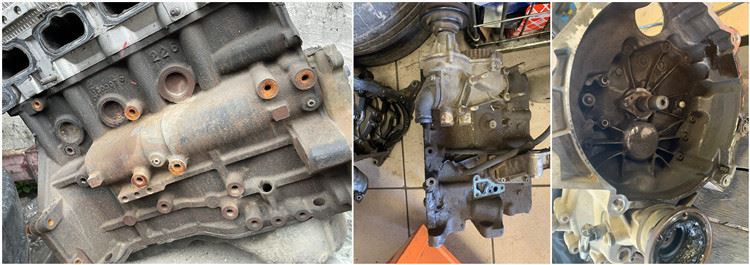

Application field pictures
Comparison with traditional clean methods
Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Cleaning Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Cleaning Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Cleaning result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision cleaning | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical required of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High labor cost. | Medium investment on machine. High consumable cost. |
FAQ
Q:Can the laser cleaner support long hours of work?
A:No problem, our laser cleaners can only be delivered to customers after rigorous testing, which can support long hours of work
Q: Are you a manufacturer ?
A: Yes,we are manufacturer with our own manufacture center .
Q: What is your main products ?
A: Our main products are laser cleaning machine ,laser welding machine ,laser cutting machine and laser marking machine .
